Xaringan presentation in a Jekyll site

tl;dr -> open xaringan presentation

What is Jekyll?

Jekyll is a static website generator. I use it for my personal website at zgfabian.github.com.

What is Xaringan?

The xaringan R package is an R Markdown extension based on the JavaScript library remark.js to generate HTML5 presentations of a different style.

The name “xaringan” came from Sharingan in the Japanese manga and anime “Naruto.” The word was deliberately chosen to be difficult to pronounce for most people (unless you have watched the anime), because its author (me) loved the style very much, and was concerned that it would become too popular. The concern was somewhat naive, because the style is actually very customizable, and users started to contribute more themes to the package later. - Yihui Xie, the author of Xaringan (and many more) R package

“The Sharingan is an ability that allows a ninja to copy, by mere sight, their opponents’ techniques while gaining incredible reflexes and perceptive abilities.” - Urban Dictionary

Xaringan overview

# install
install.packages("xaringan")
# list available theme (+font) names
names(xaringan:::list_css())

Some features of Xaringan

• Based on Rmarkdown and require some html, css and optimally js knowledge
• online and offline presentations
• pdf output with other packages (e.g. pagedown) or system tools (See details here.)
• slide separator: ``
• incremental reveal separator: --
• presenter notes separator: ???

Advanced features

• Highlight styles for code blocks via highlight.js. (cf. in YAML highlightStyle)
• to create custom xaringan themes xaringanthemer package is at your hand
• and xaringanExtra package is for advanced effects and layouts
• for more output formats, use xaringanBuilder. It can produce even gifs that everybody love (Not really.)

Configuration in Jekyll

Xaringan presentations are Rmarkdown files with YAML front-matter. I configured Jekyll to exclude them from rendering. Cf. Jekyll’s _config.yml:

exclude:
  - "*.Rmd"

We render Rmarkdown files to html output. By this setup jekyll will not have to deal directly with markdown files. One potential drawback is that you can not use liquid tags (such as {{ site.baseurl }}). You have to use only Rmarkdown, html and pay attention to YAML syntax. (ymlthis package can provide assistance to format and structure Rmarkdown’s yaml front-matter.)

Locate and pin your remark.js

• remark.js is served from a locally project folder. (In my case on minimal-mistake Jekyll theme it is ./assets/js/ folder)

output:
  xaringan::moon_reader:
    chakra: ../assets/js/remark-latest.min.js

Note: Mind your remark.js version. Xariangan provides a dedicated function, (summon_remark) to download the proper version of the remark.js script to your local disk, so you can render slides offline. You need to change the chakra argument of moon_reader() accordingly.

xaringan::summon_remark(version = "0.14.1", to = "../assets/js/")

output:
  xaringan::moon_reader:
    seal: false
    css: [default, rutgers, rutgers-fonts]
    lib_dir: ../static/xaringan-prez/libs
    chakra: ../../assets/js/remark-0.14.1.min.js # pinned version

Fine tuning

Remember that in yaml front matter every paths are relative. More importantly lib_dir: relative to rmarkdown::render’s input: file’s directory, while chakra: is relative to output_dir.

an exampe: html header customization for proper favicon display should be specified in front-matter like this:

output:
  xaringan::moon_reader:
    includes:
      in_header: ../_includes/head/favicon-xaringan.html

and contents of favicon-xaringan.html would be:

<link rel="apple-touch-icon" sizes="180x180" href="/assets/img/site/apple-touch-icon.png">
<link rel="icon" type="image/png" sizes="32x32" href="/assets/img/site/favicon-32x32.png">
<link rel="icon" type="image/png" sizes="16x16" href="/assets/img/site/favicon-16x16.png">
<link rel="manifest" href="/assets/img/site/site.webmanifest">
<link rel="mask-icon" href="../../assets/img/site/safari-pinned-tab.svg" color="#5bbad5">
<meta name="msapplication-TileColor" content="#da532c">
<meta name="theme-color" content="#ffffff">

Xaringan outside Rstudio?

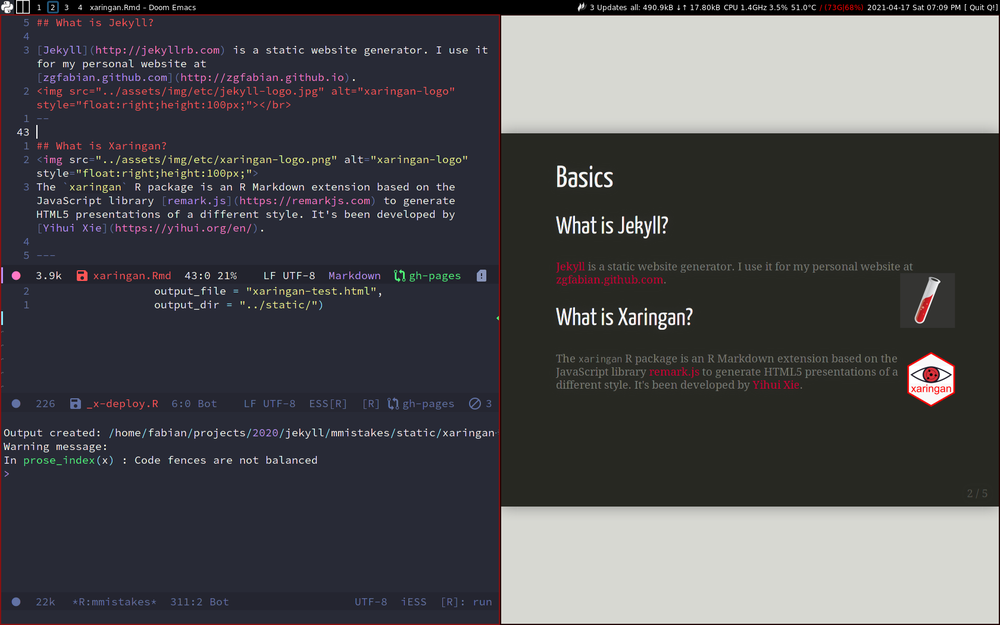

Doom Emacs + Emacs Speaks Statistics (ESS)) and Xaringan preview in Surf browser as an #rstat IDE

Further resources

• remarkjs.com - website
• xaringan in the Rmarkdown book
• R Markdown Reference Guide
• Google fonts

Other presentation tools

There are many alternatives to Xaringan. Some have rmd support. Just to mention some:

• Beamer - good old Latex
• Standalone remark.js - a complicated xaringan minus Rmd
• Reveal.js - for js (and org-mode) gurus
• Sozi, SVG-based zoom-in/out Prezi-like tool even in Inkscape or as standalone app.
• LibreOffice Impress and MS Powerpoint for office suite addicts
